How to recover application if application owner is deleted or blocked in API Store- WSO2 API Manager.

If you are trying to recover applications created by one user then we have a quick hack. We discussed how we can solve for APIM 1.9.0 and later versions in this(http://sanjeewamalalgoda.blogspot.com/2016/06/how-to-recover-application-if.html) post.

Now lets see how we can do same for APIM 1.8.0 as well.
  • You need to create an user with application subscriber role using the Management Console or use an existing user which has application subscriber permissions.
  • Below SQL statements needs to be run against the WSO2AM_DB
  • Identify SUBSCRIBER_ID and USER_ID of both users (User who left the organization and the user that we are going to transfer application ownership) from AM_SUBSCRIBER table (eg: SELECT * FROM AM_SUBSCRIBER).
  • Identify the application that needs ownership transferring from the AM_APPLICATION table
    (eg: SELECT * FROM AM_APPLICATION)
  • Update the identified application's SUBSCRIBER_ID with the newly created user's SUBSCRIBER_ID from AM_APPLICATION table.
    (eg: UPDATE AM_APPLICATION SET SUBSCRIBER_ID=2 WHERE APPLICATION_ID=2)
  • Update SUBSCRIBER_ID to new user's SUBSCRIBER_ID from the AM_APPLICATION_REGISTRATION (You need to identify entries that needs to be updated based on old user's SUBSCRIBER_ID)
    (eg: UPDATE AM_APPLICATION_REGISTRATION SET SUBSCRIBER_ID =2 WHERE REG_ID =1)
  • Update AUTHZ_USER with the newly created user's USER_ID from IDN_OAUTH2_ACCESS_TOKEN table (You need to identify entries that needs to be updated based on old user's USER_ID)
    (eg: UPDATE IDN_OAUTH2_ACCESS_TOKEN SET AUTHZ_USER ='user2' WHERE ACCESS_TOKEN ='IhnmguiHsiDCFJFFwQugWZmUfdsa')
  • Update USERNAME with newly created user's USER_ID from IDN_OAUTH_CONSUMER_APPS table (You need to identify entries that needs to be updated based on old user's USER_ID/USERNAME)
    (eg: UPDATE IDN_OAUTH_CONSUMER_APPS SET USERNAME='user2' WHERE CONSUMER_KEY='MjTy3lFFcy2FSdkjZnPBxjQwIGoa')
Note: In above examples, new user's SUBSCRIBER_ID=2 and USER_ID=user2

Please note that this is a hack and not a formal solution, We are providing above workaround believing you are having issues accessing applications where application owner has left the organization.

How to revoke access tokens generated by client application on behalf of user - WSO2 API Manager

First let me explain how OAuth 2.0 works in securing APIs in WSO2 API Manager.

01. Application owner, designer will create application by bundling set of APIs and create OAuth application for them.
02. Then they will embed application access token, consumer key and secret within application and release it to client app store.
03. When clients wanted to use application he may provide user credentials(or authentication challenge) and get access token and refresh token.
04. Access token is having limited validity(by default 1 hour) period and it need to renew after that time.
05. And same applied to refresh token as well. So application cannot use access token more than 1 hour without user credentials.
06. After one hour time (again this is configurable and if need you can reduce that time to 5 minutes or so) application will not be able to do anything on behalf of user.

If you consider end user point of view its doesn't matter underlying authentication mechanism for them (its OAuth or any other mechanism). And most of the cases we didn't wanted to revoke them specifically unless client application thinks end user is misusing application.

But in some cases user do not want to app tp proceed with generated tokens by user. In that case user need to revoke tokens by himself.
If user do not trust client application(if device stolen or app seems misbehaving) then he should log into another system(usually authorization server) and ask to revoke access tokens belong to him.

If user is willing to do something like that then we may use identity server dashboard to do that(Please refer attached screen shot of identity server dashboard, where we list applications obtained tokens on behalf of user).


If you remove application from authorized apps then all tokens obtained by app will be revoked. Users can login to user profile and see application which generated tokens and revoke them if need.

Please note that you need to install API Management features on top of identity server to make this enable. Or we can direct users to web app(which is implemented using soap services to revoke tokens) where they can list active access tokens and revoke them.

And if you believe client application misuse refresh token and generate token again and again on behalf of user we may completely disable refresh token grant handler(configuration available in identity.xm configuration file). Or we can reduce refresh token validity period. With that i believe we can solve issues due to misusing refresh token. Please see below screenshot where you can disable refresh grant per app. Else disable it completely from server level.



How to search specific API by name using new REST API in WSO2 API Manager 1.10

Lets say we have 3 APIs are created namely API, API1, API2.
With the below curl command it will retrieve details of 3 APIs available. Because all of these APIs contained API as part of name.

curl -H "Authorization: Bearer 8551158c1" http://127.0.0.1:9763/api/am/publisher/v0.9/apis?query='API'
Or
curl -H "Authorization: Bearer 94de782ddd64d3fea012bed4a71d764b" http://127.0.0.1:9763/api/am/publisher/v0.9/apis?query='Name:API'

But sometimes you may feel it didn't return you exact results (return only API and not API1, API2).
Reason is to match we used following regex and it will match with any string containing term in any place of string to be tested.
(?i)[\\w.|-]*term[\\w.|-]*
So if you need exact string match then we can do small hack for that. If you invoke API as follows and added ^ before search term and $ after search term it will return you exact match. See following command. Same applies for owner, content, version and other parameters too.

curl -H "Authorization: Bearer 94de782ddd64d3fea012bed4a71d764b" http://127.0.0.1:9763/api/am/publisher/v0.9/apis?query='Name:^CalculatorAPI$'

How to recover application if application owner is deleted or blocked in API Store- WSO2 API Manager.



From API Manager 1.9.0 onward we can address this using subscription sharing feature. All users within same group can add subscriptions, remove API subscriptions and update subscriptions, delete apps etc.
So basically all users in same group can do anything to application. So if one user leaves organization then others in group can act as application owner.

Now lets see how we can recover application in API Manager 1.8.0 and lower versions. Please note you can use same in API Manager 1.9.0 and later versions if need.

create new user from management console or use any other existing user who need to transfer application ownership.
Assign application specific roles to that user(if exists)




Then update CREATED_BY, SUBSCRIBER_ID to new users values as follows.
mysql> select * from AM_APPLICATION;
+----------------+--------------------+---------------+------------------+--------------+-------------+--------------------+----------+------------+---------------------+------------+---------------------+
| APPLICATION_ID | NAME               | SUBSCRIBER_ID | APPLICATION_TIER | CALLBACK_URL | DESCRIPTION | APPLICATION_STATUS | GROUP_ID | CREATED_BY | CREATED_TIME        | UPDATED_BY | UPDATED_TIME        |
+----------------+--------------------+---------------+------------------+--------------+-------------+--------------------+----------+------------+---------------------+------------+---------------------+
|              1 | DefaultApplication |             1 | Unlimited        | NULL         | NULL        | APPROVED           |          | admin      | 2016-06-24 13:07:40 | NULL       | 0000-00-00 00:00:00 |
|              2 | test-admin         |             1 | Unlimited        |              |             | APPROVED           |          | admin      | 2016-06-28 17:44:44 | NULL       | 0000-00-00 00:00:00 |
|              3 | DefaultApplication |             2 | Unlimited        | NULL         | NULL        | APPROVED           |          | sanjeewa   | 2016-06-28 17:46:49 | NULL       | 0000-00-00 00:00:00 |
+----------------+--------------------+---------------+------------------+--------------+-------------+--------------------+----------+------------+---------------------+------------+---------------------+


mysql> update AM_APPLICATION set CREATED_BY ='sanjeewa' where NAME = 'test-admin';
mysql> update AM_APPLICATION set SUBSCRIBER_ID ='2' where NAME = 'test-admin';

Now table will look like following
mysql> select * from AM_APPLICATION;
+----------------+--------------------+---------------+------------------+--------------+-------------+--------------------+----------+------------+---------------------+------------+---------------------+
| APPLICATION_ID | NAME               | SUBSCRIBER_ID | APPLICATION_TIER | CALLBACK_URL | DESCRIPTION | APPLICATION_STATUS | GROUP_ID | CREATED_BY | CREATED_TIME        | UPDATED_BY | UPDATED_TIME        |
+----------------+--------------------+---------------+------------------+--------------+-------------+--------------------+----------+------------+---------------------+------------+---------------------+
|              1 | DefaultApplication |             1 | Unlimited        | NULL         | NULL        | APPROVED           |          | admin      | 2016-06-24 13:07:40 | NULL       | 0000-00-00 00:00:00 |
|              2 | test-admin         |             2 | Unlimited        |              |             | APPROVED           |          | sanjeewa   | 2016-06-28 17:51:03 | NULL       | 0000-00-00 00:00:00 |
|              3 | DefaultApplication |             2 | Unlimited        | NULL         | NULL        | APPROVED           |          | sanjeewa   | 2016-06-28 17:46:49 | NULL       | 0000-00-00 00:00:00 |
+----------------+--------------------+---------------+------------------+--------------+-------------+--------------------+----------+------------+---------------------+------------+---------------------+


Then go to API store and log as new user.
You can generate new access tokens and add new API subscriptions to application.

How to enforce users to add only https URLs for call back URL when you create Application in API Store

Even though not required, TLS is strongly recommended for client applications. Since its not something mandate by spec we let our users to add both http and https URLs. But if you need to let users to add only HTTPS url then we have a solution for that as well. Since all users come to API store and create applications we may let users to add only HTTPS urls. You can do this with following steps.

(1) Navigate to "/repository/deployment/server/jaggeryapps/store/site/themes/fancy/subthemes" directory.
(2) Create a directory with the name of your subtheme. For example "test".
(3) Copy the "/wso2am-1.10.0/repository/deployment/server/jaggeryapps/store/site/themes/fancy/templates/application/application-add/js/application-add.js" to the new subtheme location "repository/deployment/server/jaggeryapps/store/site/themes/fancy/subthemes/test/templates/application/application-add/js/application-add.js".
(4) Update $("#appAddForm").validate in copied file as follows.

You should replace,
$("#appAddForm").validate({
submitHandler: function(form)
{ applicationAdd(); }

});

With following,
$("#appAddForm").validate({
submitHandler: function(form) {
var callbackURLTest =$("#callback-url").val();
var pattern = /^((https):\/\/)/;
if(pattern.test(callbackURLTest))
{ applicationAdd(); }

else
{ window.alert("Please enter valid URL for Callback URL. Its recommend to use https url."); }


}
});

(5) Then Edit "/repository/deployment/server/jaggeryapps/store/site/conf/site.json" file as below in order to make the new sub theme as the default theme.
"theme" :
{ "base" : "fancy", "subtheme" : "test" }

Then users will be able to add only HTTP urls when they create applications in API store.

Details about ports in use when WSO2 API Manager started.

Management console ports. WSO2 products that provide a management console use the following servlet transport ports:
    9443 - HTTPS servlet transport (the default URL of the management console is https://localhost:9443/carbon)
    9763 - HTTP servlet transport

LDAP server ports
Provided by default in the WSO2 Carbon platform.
    10389 - Used in WSO2 products that provide an embedded LDAP server

KDC ports
    8000 - Used to expose the Kerberos key distribution center server

JMX monitoring ports
WSO2 Carbon platform uses TCP ports to monitor a running Carbon instance using a JMX client such as JConsole. By default, JMX is enabled in all products. You can disable it using /repository/conf/etc/jmx.xml file.
    11111 - RMIRegistry port. Used to monitor Carbon remotely
    9999 - RMIServer port. Used along with the RMIRegistry port when Carbon is monitored from a JMX client that is behind a firewall

Clustering ports
To cluster any running Carbon instance, either one of the following ports must be opened.
    45564 - Opened if the membership scheme is multicast
    4000 - Opened if the membership scheme is wka

Random ports
Certain ports are randomly opened during server startup. This is due to specific properties and configurations that become effective when the product is started. Note that the IDs of these random ports will change every time the server is started.

    A random TCP port will open at server startup because of the -Dcom.sun.management.jmxremote property set in the server startup script. This property is used for the JMX monitoring facility in JVM.
    A random UDP port is opened at server startup due to the log4j appender (SyslogAppender), which is configured in the /repository/conf/log4j.properties file.

These ports are randomly open at the server startup.
    tcp 0 0 :::55746 :::
    This port will be open by -Dcom.sun.management.jmxremote property set at the startup script. The purpose of this is to used for the JMX monitoring facility in JVM. So we don't have a control over this port.

    udp 0 0 :::46316 :::
    This port is open due to log4j appender (SyslogAppender). You can find this on
    /repository/conf/log4j.properties
    If you don't want this log on the log file, you can comment it and it will not harm to the server.

API Manager specific ports.
    10397 - Thrift client and server ports
    8280, 8243 - NIO/PT transport ports
    7711 - Thrift SSL port for secure transport, where the client is authenticated to BAM/CEP: stat pub

How refresh token validity period works in WSO2 API Manager 1.9.0 and later versions.

If refresh token renewal not enabled(using
<RenewRefreshTokenForRefreshGrant>

parameter in identity.xml configuration file), we use existing refresh token else we issue a new refresh token. If issuing new refresh token, use default refresh token validity period(which is configured in
<RefreshTokenValidityPeriod>

parameter of identity.xml) otherwise use existing refresh token's validity period.
That is how refresh grant handler logic implemented in OAuth code

First i will generate access token using password grant as follows.
curl -k -d "grant_type=password&username=admin&password=admin" -H "Authorization: Basic X3kzVVRFSnNLdUNKZlBwOUpNUlNiV3drbFE4YTpmSzVPUzZFNEJfaW8xSFk1SGZsZjVPeWFreW9h" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:8243/token
{"scope":"default","token_type":"Bearer","expires_in":3600,"refresh_token":"f0b7e3839143eec6439c10faf1a4c714","access_token":"03a3b01747b92ea714f171abc02791ba"}

Then refresh token with default configurations.
curl -k -d "grant_type=refresh_token&refresh_token=f0b7e3839143eec6439c10faf1a4c714&scope=PRODUCTION" -H "Authorization: Basic X3kzVVRFSnNLdUNKZlBwOUpNUlNiV3drbFE4YTpmSzVPUzZFNEJfaW8xSFk1SGZsZjVPeWFreW9h" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:8243/token
{"scope":"default","token_type":"Bearer","expires_in":3600,"refresh_token":"4f1bebe8b284b3216efb228d523df452","access_token":"d8db6c3892a48adf1a81f320a4a46a66"}

As you can see refresh token update with token generation request.
Now i disable reneval refresh token by updating following parameters.

<RenewRefreshTokenForRefreshGrant>false</RenewRefreshTokenForRefreshGrant>

Then generate access token using refresh token.
curl -k -d "grant_type=refresh_token&refresh_token=4f1bebe8b284b3216efb228d523df452&scope=PRODUCTION" -H "Authorization: Basic X3kzVVRFSnNLdUNKZlBwOUpNUlNiV3drbFE4YTpmSzVPUzZFNEJfaW8xSFk1SGZsZjVPeWFreW9h" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:8243/token
{"scope":"default","token_type":"Bearer","expires_in":3600,"refresh_token":"4f1bebe8b284b3216efb228d523df452","access_token":"d7d2603c07fcadb9faf9593107bfbedd"}
As you can see refresh token did not changed and it remains as it is. While having new access token with same refresh token.

How refresh token validity period works in WSO2 API Manager 1.10.0 and later versions.

If refresh token renewal not enabled(using
<RenewRefreshTokenForRefreshGrant>

parameter in identity.xml configuration file), we use existing refresh token else we issue a new refresh token. If issuing new refresh token, use default refresh token validity period(which is configured in
<RefreshTokenValidityPeriod>

parameter of identity.xml) otherwise use existing refresh token's validity period.
That is how refresh grant handler logic implemented in OAuth code

First i will generate access token using password grant as follows.
curl -k -d "grant_type=password&username=admin&password=admin" -H "Authorization: Basic X3kzVVRFSnNLdUNKZlBwOUpNUlNiV3drbFE4YTpmSzVPUzZFNEJfaW8xSFk1SGZsZjVPeWFreW9h" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:8243/token
{"scope":"default","token_type":"Bearer","expires_in":3600,"refresh_token":"f0b7e3839143eec6439c10faf1a4c714","access_token":"03a3b01747b92ea714f171abc02791ba"}

Then refresh token with default configurations.
curl -k -d "grant_type=refresh_token&refresh_token=f0b7e3839143eec6439c10faf1a4c714&scope=PRODUCTION" -H "Authorization: Basic X3kzVVRFSnNLdUNKZlBwOUpNUlNiV3drbFE4YTpmSzVPUzZFNEJfaW8xSFk1SGZsZjVPeWFreW9h" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:8243/token
{"scope":"default","token_type":"Bearer","expires_in":3600,"refresh_token":"4f1bebe8b284b3216efb228d523df452","access_token":"d8db6c3892a48adf1a81f320a4a46a66"}

As you can see refresh token update with token generation request.
Now i disable reneval refresh token by updating following parameters.

<RenewRefreshTokenForRefreshGrant>false</RenewRefreshTokenForRefreshGrant>



curl -k -d "grant_type=refresh_token&refresh_token=4f1bebe8b284b3216efb228d523df452&scope=PRODUCTION" -H "Authorization: Basic X3kzVVRFSnNLdUNKZlBwOUpNUlNiV3drbFE4YTpmSzVPUzZFNEJfaW8xSFk1SGZsZjVPeWFreW9h" -H "Content-Type: application/x-www-form-urlencoded" https://localhost:8243/token
{"scope":"default","token_type":"Bearer","expires_in":3600,"refresh_token":"4f1bebe8b284b3216efb228d523df452","access_token":"d7d2603c07fcadb9faf9593107bfbedd"}

In this case refresh token generated time will remains as it is. While having new access token and refresh token(but refresh token created time would be same).

How to add custom log appender to WSO2 products to directs logs to separate file(take mediator logs to different file)

Implement custom log appender class as follows.

package org.wso2.test.logging;
import org.apache.log4j.DailyRollingFileAppender;
import org.apache.log4j.spi.LoggingEvent;
import org.wso2.carbon.context.CarbonContext;
import org.wso2.carbon.utils.logging.LoggingUtils;
import org.wso2.carbon.utils.logging.TenantAwareLoggingEvent;
import java.io.File;
import java.io.IOException;
import java.security.AccessController;
import java.security.PrivilegedAction;
public class CustomAppender extends DailyRollingFileAppender {
    private static final String LOG_FILE_PATH = org.wso2.carbon.utils.CarbonUtils.getCarbonHome() + File.separator + "repository" +
                                                File.separator + "logs" + File.separator + "messages" + File.separator;

    @Override
    protected void subAppend(LoggingEvent loggingEvent) {
        int tenantId = AccessController.doPrivileged(new PrivilegedAction() {
            public Integer run() {
                return CarbonContext.getThreadLocalCarbonContext().getTenantId();
            }
        });

        String logFileName = "test_file";
            try {
                this.setFile(LOG_FILE_PATH + logFileName, this.fileAppend, this.bufferedIO, this.bufferSize);
            } catch (IOException ex) {
                ex.printStackTrace();
            }
            String serviceName = CarbonContext.getThreadLocalCarbonContext().getApplicationName();
            final TenantAwareLoggingEvent tenantAwareLoggingEvent = LoggingUtils
                    .getTenantAwareLogEvent(loggingEvent, tenantId, serviceName);
            AccessController.doPrivileged(new PrivilegedAction() {
                public Void run() {
                    CustomAppender.super.subAppend(tenantAwareLoggingEvent);
                    return null; // nothing to return
                }
            });
        }
    }
}


Then add following to log4j.properties file.

log4j.logger.org.wso2.test.logging.LoggingClassMediator=INFO, NEW_CARBON_LOGFILE

log4j.appender.NEW_CARBON_LOGFILE=org.wso2.test.logging.CustomAppender
log4j.appender.NEW_CARBON_LOGFILE.File=${carbon.home}/repository/logs/${instance.log}/wso2carbon${instance.log}.log
#log4j.appender.NEW_CARBON_LOGFILE.Append=true
log4j.appender.NEW_CARBON_LOGFILE.layout=org.wso2.carbon.utils.logging.TenantAwarePatternLayout
log4j.appender.NEW_CARBON_LOGFILE.layout.ConversionPattern=TID: [%T] [%S] [%d] %P%5p {%c} - %x %m {%c}%n
log4j.appender.NEW_CARBON_LOGFILE.layout.TenantPattern=%U%@%D [%T] [%S]
log4j.appender.NEW_CARBON_LOGFILE.threshold=INFO
log4j.appender.NEW_CARBON_LOGFILE.MaxFileSize=5kb


Then add org.wso2.test.logging.LoggingClassMediator class to your mediation flow. Please see sample mediator code below.

package org.wso2.test.logging;
import org.apache.log4j.Logger;
import org.apache.synapse.MessageContext;
import org.apache.synapse.mediators.AbstractMediator;
public class LoggingClassMediator extends AbstractMediator {
private static final Logger log = Logger.getLogger(AVSLoggingClassMediator.class);
public LoggingClassMediator() {
}
public boolean mediate(MessageContext mc) {
String apiName = mc.getProperty("SYNAPSE_REST_API").toString();
String name = "APIName::" + apiName+"::";
try{
log.info(name+"LOGGING MESSAGE " + mc.getProperty("RESPONSE_TIME"));
log.info(name+"LOGGING MESSAGE " + mc.getProperty("SYNAPSE_REST_API"));
}catch(Exception e){
log.error(name+"ERROR :",e);
}
return true;
}

How to change pooling configurations for caonnections made from API Gateway to backend - WSO2 API Manager, ESB

Gateway to back end connection pooling related only parameter is http.max.connection.per.host.port.
and default value would be integer max value.  Worker pool size do not have direct relationship with client to gateway connections or gateway to back end connections.  They are just processing threads available within server.

So at anytime of you need to change pooling details from gateway to backend you can tunne following parameter in "passthru-http.properties" file.


http.max.connection.per.host.port = 20

How to Create Service Metadata Repository for WSO2 Products(WSO2 ESB, DSS, AS)


Sometimes we need to store all service metadata in single place and maintain changes, life cycles etc. To address this we can implement this as automated process.
Here is the detailed flow.
  • In jenkins we will deployed scheduled task to trigger some event periodically.
  • Periodic task will call WSO2 ESB, DSS and App Server’s admin services to get service metadata. In ESB we can call proxy service admin service to list app proxy services deployed in ESB. From same call we can get WSDLs associated with services. Please refer this article for more information about admin services and how we can use them.
  • In same way we can call all services and get complete service data.
  • Then we can call registry rest API and push that information.  Please refer this article for more information about Registry REST API.

If we consider proxy service details then we can follow approach listed below.
Create web service client for https://127.0.0.1:9444/services/ServiceAdmin service and invoke it from client.
See following Soapui sample to get all proxy services deployed in ESB.

Screenshot from 2016-06-17 11-50-59.png


You will see response like below. There you will all details related to given proxy service such as wsdls, service status, service type etc. So you can list all service metadata using the information we retrieved from this web service call.


<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/">
 <soapenv:Body>
    <ns:listServicesResponse xmlns:ns="http://org.apache.axis2/xsd">
       <ns:return xsi:type="ax2539:ServiceMetaDataWrapper" xmlns:ax2541="http://neethi.apache.org/xsd"
xmlns:ax2539="http://mgt.service.carbon.wso2.org/xsd"
xmlns:ax2542="http://util.java/xsd" xmlns:ax2545="http://utils.carbon.wso2.org/xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
          <ax2539:numberOfActiveServices>5</ax2539:numberOfActiveServices>
          <ax2539:numberOfCorrectServiceGroups>5</ax2539:numberOfCorrectServiceGroups>
          <ax2539:numberOfFaultyServiceGroups>0</ax2539:numberOfFaultyServiceGroups>
          <ax2539:numberOfPages>1</ax2539:numberOfPages>
          <ax2539:serviceTypes>axis2</ax2539:serviceTypes>
          <ax2539:serviceTypes>proxy</ax2539:serviceTypes>
          <ax2539:serviceTypes>sts</ax2539:serviceTypes>
          <ax2539:services xsi:type="ax2539:ServiceMetaData">
             <ax2539:CAppArtifact>false</ax2539:CAppArtifact>
             <ax2539:active>true</ax2539:active>
             <ax2539:description xsi:nil="true"/>
             <ax2539:disableDeletion>false</ax2539:disableDeletion>
             <ax2539:disableTryit>false</ax2539:disableTryit>
             <ax2539:eprs xsi:nil="true"/>
             <ax2539:foundWebResources>false</ax2539:foundWebResources>
             <ax2539:mtomStatus xsi:nil="true"/>
             <ax2539:name>testproxy</ax2539:name>
             <ax2539:operations xsi:nil="true"/>
             <ax2539:scope xsi:nil="true"/>
             <ax2539:securityScenarioId xsi:nil="true"/>
             <ax2539:serviceDeployedTime>1970-01-01 05:30:00</ax2539:serviceDeployedTime>
             <ax2539:serviceGroupName>testproxy</ax2539:serviceGroupName>
             <ax2539:serviceId xsi:nil="true"/>
             <ax2539:serviceType>proxy</ax2539:serviceType>
             <ax2539:serviceUpTime>16969day(s) 6hr(s) 20min(s)</ax2539:serviceUpTime>
             <ax2539:serviceVersion xsi:nil="true"/>
             <ax2539:tryitURL>/services/testproxy?tryit</ax2539:tryitURL>
             <ax2539:wsdlPortTypes xsi:nil="true"/>
             <ax2539:wsdlPorts xsi:nil="true"/>
             <ax2539:wsdlURLs>http://sanjeewa-ThinkPad-X1-Carbon-3rd:8281/services/testproxy?wsdl</ax2539:wsdlURLs>
             <ax2539:wsdlURLs>http://sanjeewa-ThinkPad-X1-Carbon-3rd:8281/services/testproxy?wsdl2</ax2539:wsdlURLs>
          </ax2539:services>
          <ax2539:services xsi:type="ax2539:ServiceMetaData">
             <ax2539:CAppArtifact>false</ax2539:CAppArtifact>
             <ax2539:active>true</ax2539:active>
             <ax2539:description xsi:nil="true"/>
             <ax2539:disableDeletion>false</ax2539:disableDeletion>
             <ax2539:disableTryit>false</ax2539:disableTryit>
             <ax2539:eprs xsi:nil="true"/>
             <ax2539:foundWebResources>false</ax2539:foundWebResources>
             <ax2539:mtomStatus xsi:nil="true"/>
             <ax2539:name>testp</ax2539:name>
             <ax2539:operations xsi:nil="true"/>
             <ax2539:scope xsi:nil="true"/>
             <ax2539:securityScenarioId xsi:nil="true"/>
             <ax2539:serviceDeployedTime>1970-01-01 05:30:00</ax2539:serviceDeployedTime>
             <ax2539:serviceGroupName>testp</ax2539:serviceGroupName>
             <ax2539:serviceId xsi:nil="true"/>
             <ax2539:serviceType>proxy</ax2539:serviceType>
             <ax2539:serviceUpTime>16969day(s) 6hr(s) 20min(s)</ax2539:serviceUpTime>
             <ax2539:serviceVersion xsi:nil="true"/>
             <ax2539:tryitURL>/services/testp?tryit</ax2539:tryitURL>
             <ax2539:wsdlPortTypes xsi:nil="true"/>
             <ax2539:wsdlPorts xsi:nil="true"/>
      <ax2539:wsdlURLs>http://sanjeewa-ThinkPad-X1-Carbon-3rd:8281/services/testp?wsdl</ax2539:wsdlURLs>
    <ax2539:wsdlURLs>http://sanjeewa-ThinkPad-X1-Carbon-3rd:8281/services/testp?wsdl2</ax2539:wsdlURLs>
          </ax2539:services>
       </ns:return>
    </ns:listServicesResponse>
 </soapenv:Body>
</soapenv:Envelope>

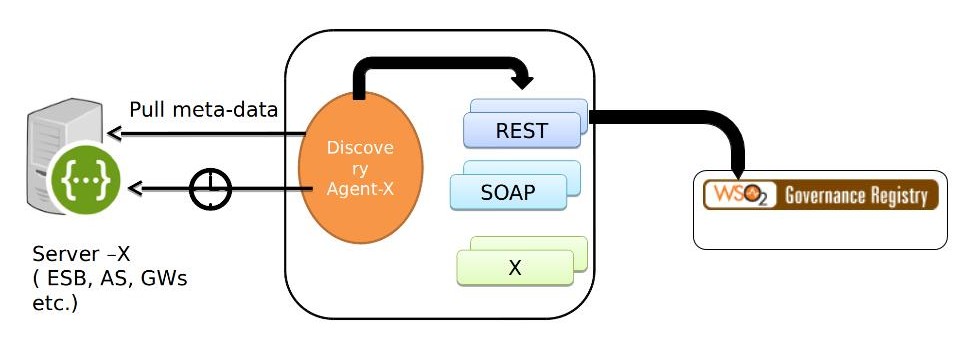

We can automate this service metadata retrieving process and persist it to registry. Please refer below diagram to understand flow for this use case. Discovery agent will communicate with servers and use REST client to push events to registry.

Untitled drawing(1).jpg

How to define environment specific parameters and resolve them during build time using maven - WSO2 ESB endpoints

Lets say we have multiple environments named DEV, QA, PROD, you need to have different Carbon Application (C-App) projects to group the dynamic artifacts for different environments such as endpoints, WSDLs and policies.

To address this we can have property file along with artifacts to store environment specific parameters. Maven can build the artifacts based on the properties in the property file to create artifacts that are specific to the given environment.

Given below is an example of this. An endpoint value should be different from one environment to another. We can follow the below approach to achieve this.

Define the endpoint EP1 as below, having a token for hostname which could be replaced later.
    <address trace="disable" uri="http://@replace_token/path"/>

Add the maven antrun plugin to replace the token using a maven property as below in pom file.
  <plugin>
    <artifactId>maven-antrun-plugin</artifactId>
    <executions>
      <execution>
        <phase>prepare-package</phase>
        <configuration>
          <tasks>
            <replace token= "@replace_token" value="${hostName}" dir="${basedir}/target/capp/artifacts/endpoint/EP1/">
              <include name="**/*.xml"/>
                           </replace>
          </tasks>
        </configuration>
        <goals>
          <goal>run</goal>
        </goals>
      </execution>
    </executions>
  </plugin>

Now build the project providing the maven property hostName as below,
mvn clean install -DhostName=127.0.0.1
Instead of giving the hostname manually as above, now we can configure jenkins or any other build server to pick up the hostname from a config file and feed it as a system property to the build process.


Once we completed environment specific builds we will have 2 car files for each environment and they have same endpoints but actually they are pointed to different URLs as follows.

|___ End Point Project
    |___DEV
        |__ backendEP.xml     //points to dev backend,   http://dev.wso2as.com/9763
    |___QA
        |__ backendEP.xml     //points to qa backend,      http://qa.wso2as.com/9763


Building Services with WSO2 Microservices Framework for Java

Many organizations today are leveraging microservices architecture (MSA) which is becoming increasingly popular because of its many potential advantages. This webinar introduces WSO2 Microservices Framework for Java (MSF4J), which provides the necessary framework and tooling to build an MSA solution.Recently i presented about microservices at Minneapolis, MN user group meetup (http://www.meetup.com/WSO2-Middleware/events/231390337). During that session we discussed about following topics.
  • What is Microservice?
  • Why Microservice?
  • Microservices outer architecture.
  • WSO2 Microservice movement.
  • Introduction to WSO2 MSF4J
  • Implementation of WSO2 MSF4J
  • Develop Microservices with MSF4J(security, metrics etc. )
  • Demo.


Please find slides i prepared for that session


Empowering the Future of API Management: Unveiling the Journey of WSO2 API Platform for Kubernetes (APK) Project and the Anticipated Alpha Release

  Introduction In the ever-evolving realm of API management, our journey embarked on the APK project eight months ago, and now, with great a...
